Model |
Huawei Router BE7 |
Huawei Router BE7 Pro |
|
RAM |
512M |
512M |
|
ROM |
128M |
128M |
|
QOS |
Support device speed limited QoS; Intelligent QoS that supports automatic recognition of business flows |
Support device speed limited QoS; Intelligent QoS that supports automatic recognition of business flows |
|
WPS |
Support |
Support |
|
Transmission Standard |
5GHz：802.11be/ax/ac/n/a 2*2 MIMO， 2.4GHz：802.11be/ax/n/g/b 2*2 MIMO |
5GHz：802.11be/ax/ac/n/a 2*2 MIMO， 2.4GHz：802.11be/ax/n/g/b 2*2 MIMO |
|
Wireless Transmission Rate |
2.4 GHz: 688 Mbps (theoretical) 5 GHz: 5765Mbps (theoretical) Total theoretical negotiated rate: 6453Mbps |
2.4 GHz: 688 Mbps (theoretical) 5 GHz: 5765Mbps (theoretical) Total theoretical negotiated rate: 6453Mbps |
|
Wireless Frequency Band |
2.4 GHz & 5 GHz (supports prioritize 2-band) |
2.4 GHz & 5 GHz (supports prioritize 2-band) |
|
WiFi Funtion |
Wall penetration, standard, sleep |
Wall penetration, standard, sleep |
|
Wired Standard |
802.3、802.3u、802.3ab |
802.3、802.3u、802.3ab |
|
Software |

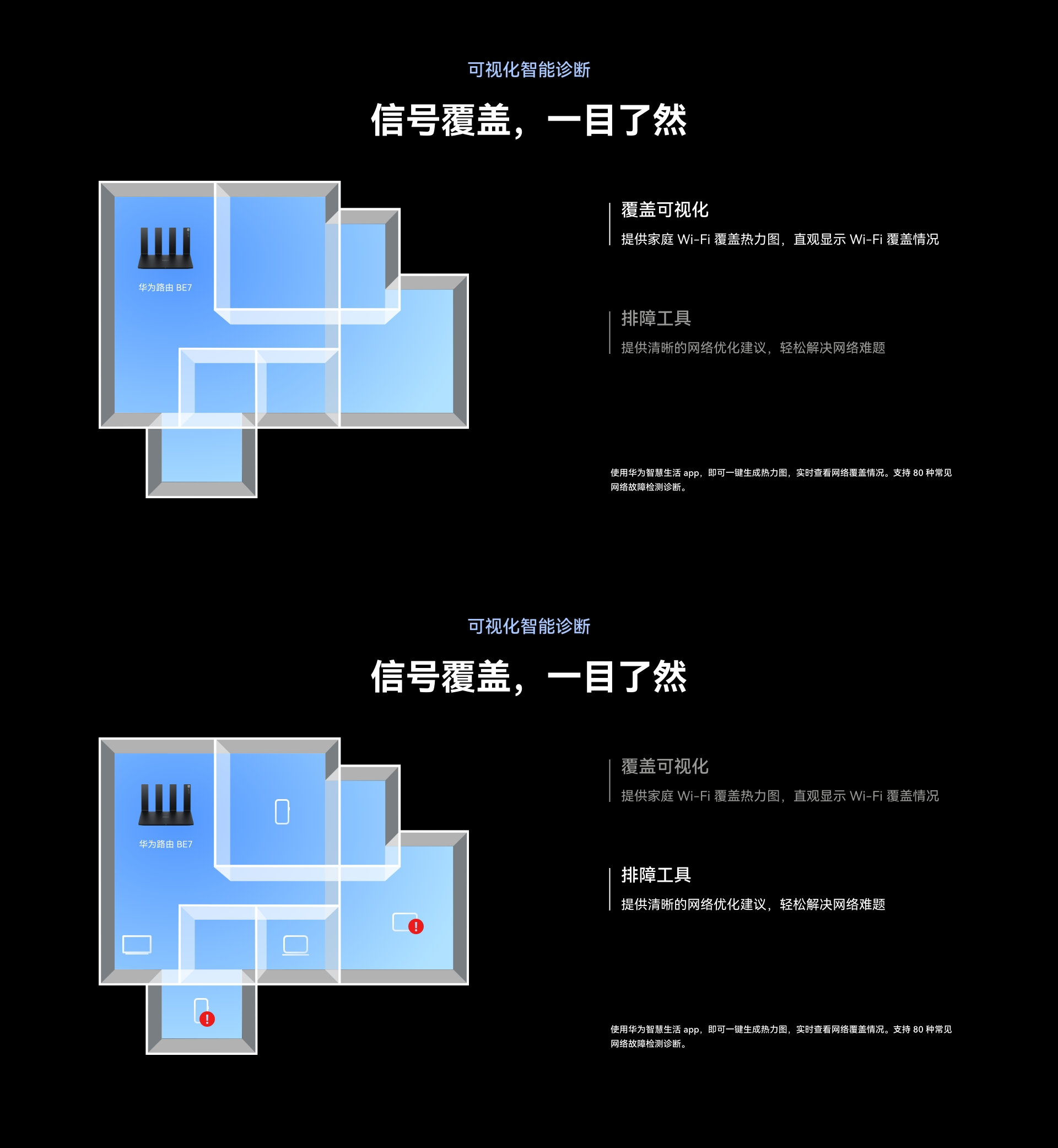

Supports Lingxi dual Wi Fi, HarmonyOS super routing, visual intelligent diagnosis, children's internet care, mobile game acceleration, HarmonyOS intelligent connection, dual band optimization, blind port insertion, 802.11kvr, Wi Fi relay, Wi Fi timing switch, guest Wi Fi, channel automatic optimization, remote management, IPv4/IPv6, PPPoE/DHCP/static IP/Bridge WAN internet access, MAC address cloning, MAC address filtering, DMZ/virtual server and other functions. |
Supports Lingxi dual Wi Fi, HarmonyOS super routing, visual intelligent diagnosis, children's internet care, mobile game acceleration, HarmonyOS intelligent connection, dual band optimization, blind port insertion, 802.11kvr, Wi Fi relay, Wi Fi timing switch, guest Wi Fi, channel automatic optimization, remote management, IPv4/IPv6, PPPoE/DHCP/static IP/Bridge WAN internet access, MAC address cloning, MAC address filtering, DMZ/virtual server and other functions. |
|
Port |
2* 1000/100/10M WAN/LAN adaptive Port 2*2500/100/10M WAN/LAN adaptive Port |
4*2500/100/10M WAN/LAN adaptive Port |
|
LED |
1 |
1 |
|
Power |
12V/2A |
12V/2A |
|
WPS/RESET |
1 |
1 |
|
External antenna |
Don't Support |
Don't Support |
|
Wireless Band |
2.4GHz：2.4-2.483 GHz； 5GHz：5.15-5.35 GHz, 5.725~5.85 GHz |
2.4GHz：2.4-2.483 GHz； 5GHz：5.15-5.35 GHz, 5.725~5.85 GHz |
|
Antenna |
4 |
4 |
|
Size(Fold) |
225 mm x 177.9 mm x 59.5 mm |
225 mm x 177.9 mm x 59.5 mm |

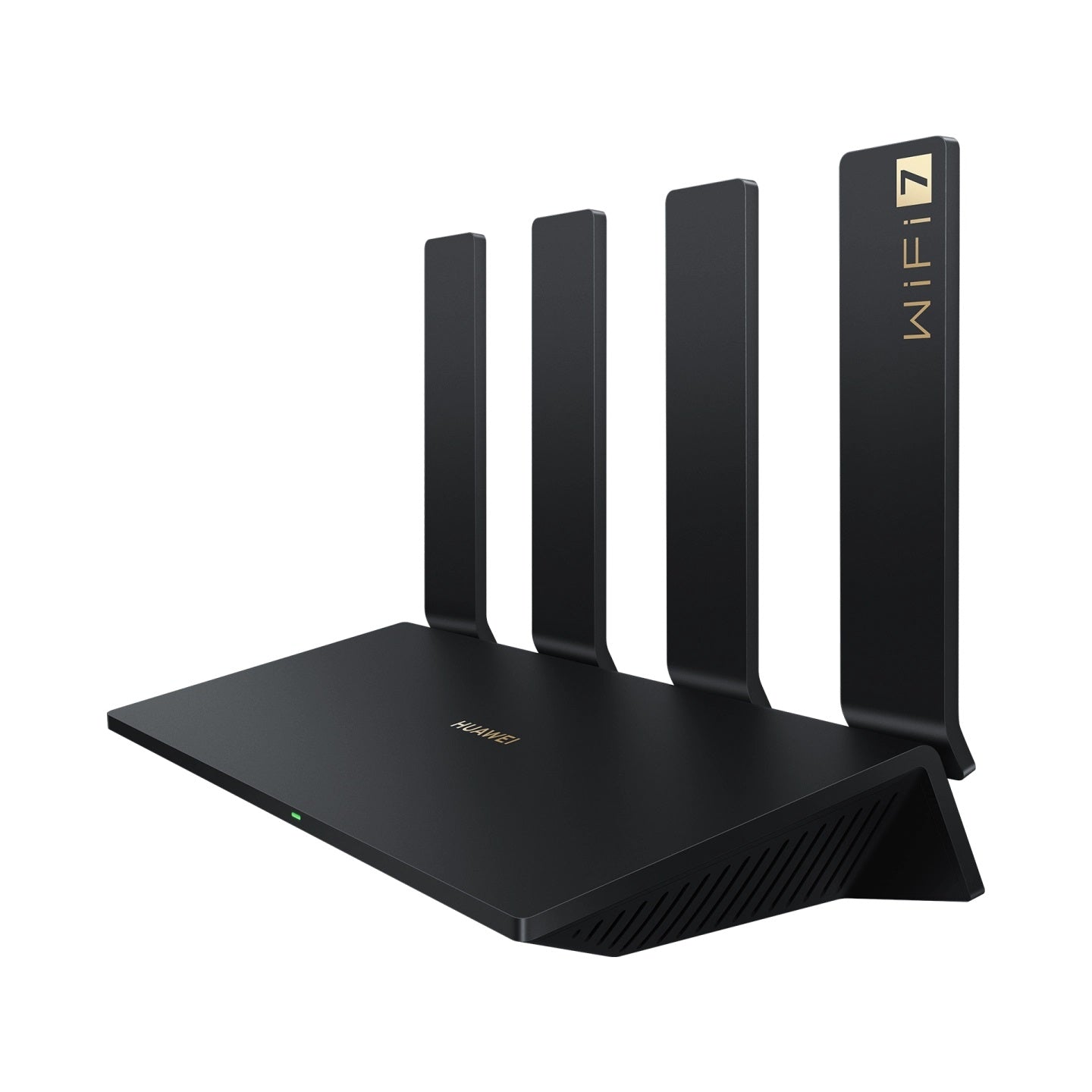

Model

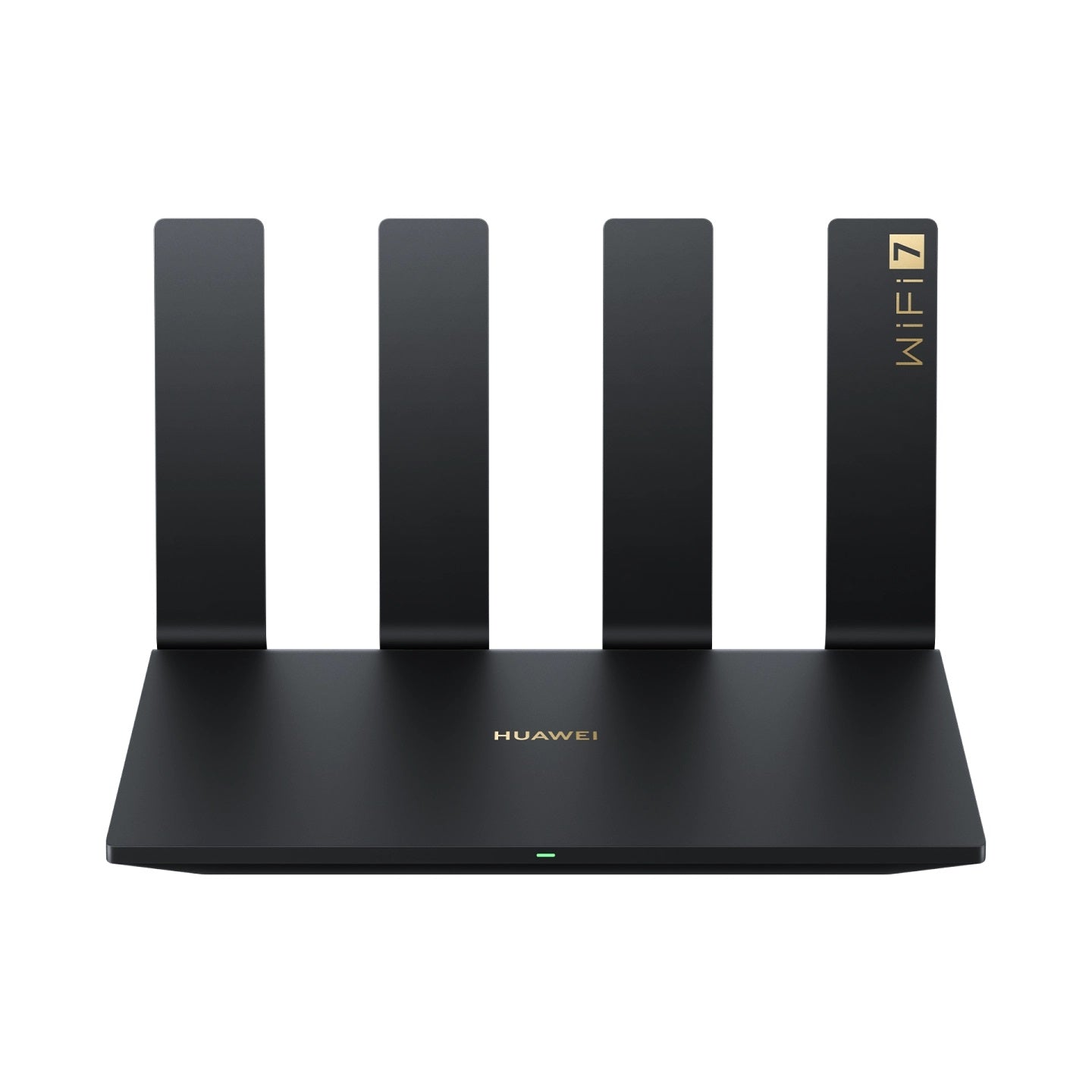

Huawei Router BE7
RAM
512M
ROM
128M
QOS
Support device speed limited QoS;
Intelligent QoS that supports automatic recognition of business flows
WPS
Support
Transmission Standard
5GHz：802.11be/ax/ac/n/a 2*2 MIMO，
2.4GHz：802.11be/ax/n/g/b 2*2 MIMO
Wireless Transmission Rate
2.4 GHz: 688 Mbps (theoretical)
5 GHz: 5765Mbps (theoretical)
Total theoretical negotiated rate: 6453Mbps
Wireless Frequency Band
2.4 GHz & 5 GHz (supports prioritize 2-band)
WiFi Funtion
Wall penetration, standard, sleep
Wired Standard
802.3、802.3u、802.3ab
Software
Supports Lingxi dual Wi Fi, HarmonyOS super routing, visual intelligent diagnosis, children's internet care, mobile game acceleration, HarmonyOS intelligent connection, dual band optimization, blind port insertion, 802.11kvr, Wi Fi relay, Wi Fi timing switch, guest Wi Fi, channel automatic optimization, remote management, IPv4/IPv6, PPPoE/DHCP/static IP/Bridge WAN internet access, MAC address cloning, MAC address filtering, DMZ/virtual server and other functions.

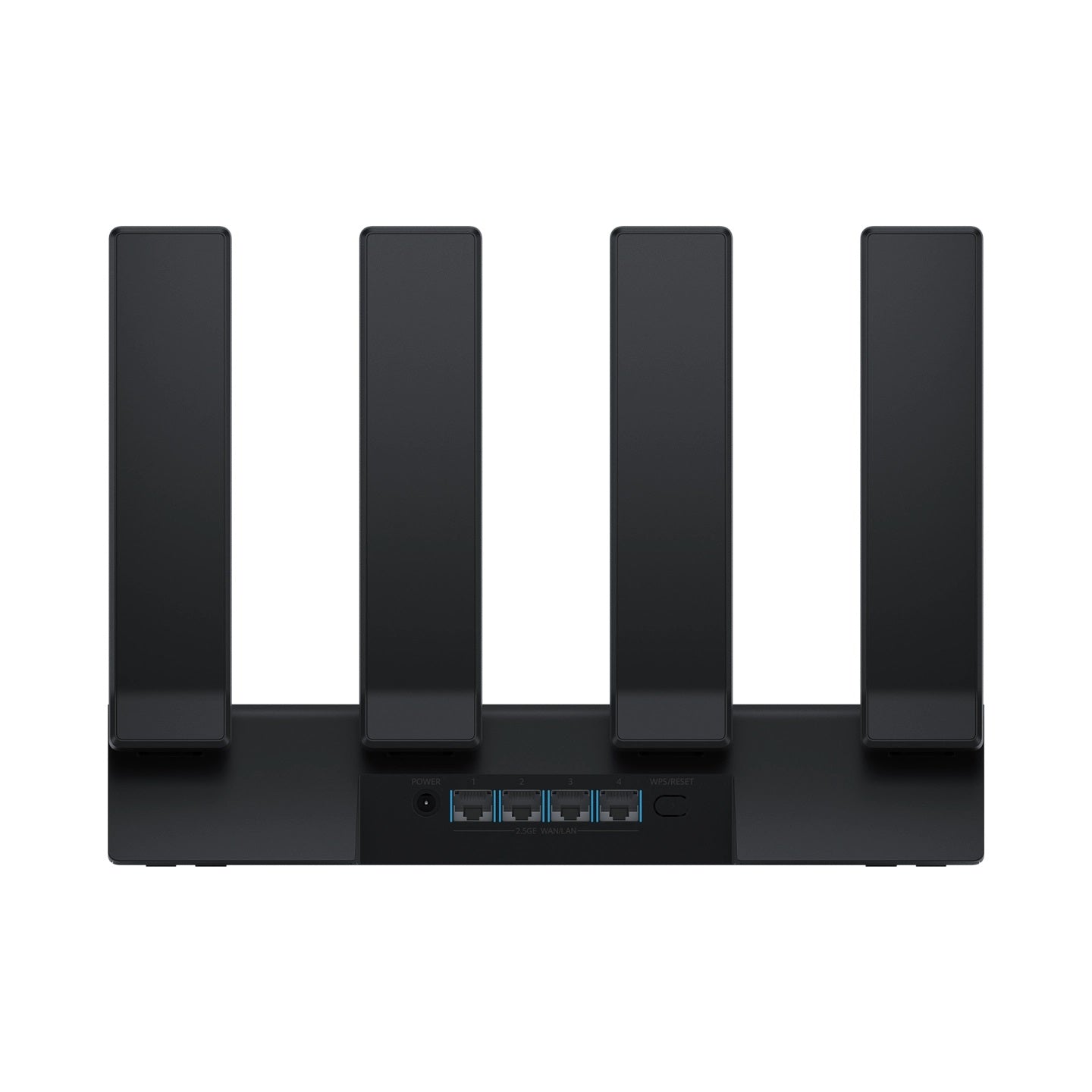

Port
2* 1000/100/10M WAN/LAN adaptive Port
2*2500/100/10M WAN/LAN adaptive Port
LED
1
Power
12V/2A
WPS/RESET
1
External antenna
Don't Support
Wireless Band
2.4GHz：2.4-2.483 GHz；
5GHz：5.15-5.35 GHz, 5.725~5.85 GHz
Antenna
4
Size(Fold)
225 mm x 177.9 mm x 59.5 mm
