Propagation name: Honor Route 5 2.5G version /Gigabit Version
Certified model :BYS-700/BYS-704
Operating system :linux 5.4
CPU model :AN7563
Body size :120mm*108mm*177mm
Body weight :570g
RAM:256Mbytes
ROM:128Mbytes
Network port transfer protocol :802.3, 802.3U, 802.3AB

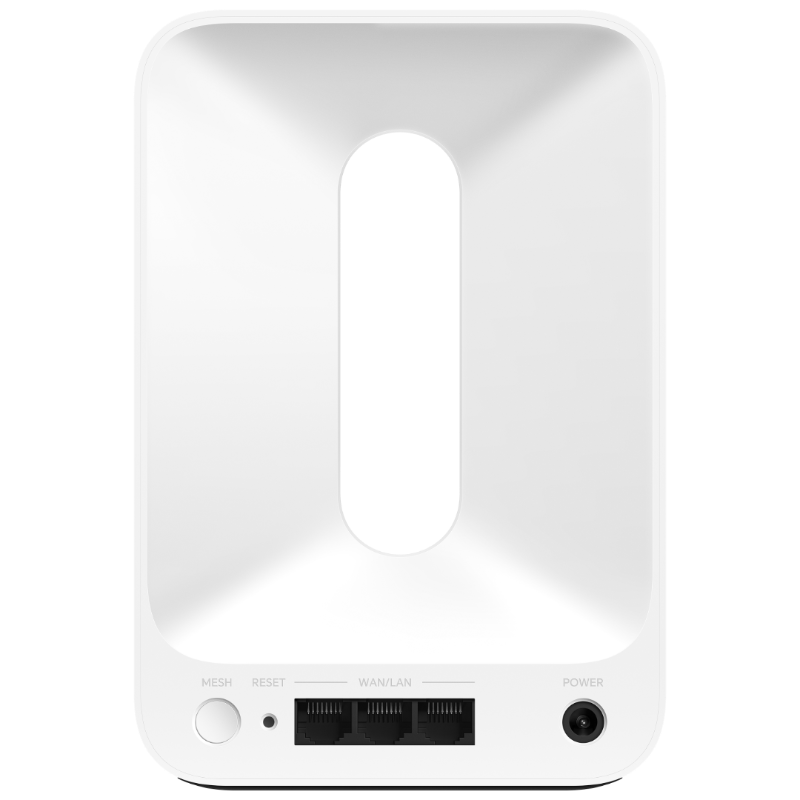

2.5G version: Ethernet ports :4 (3 10M/100M/1000Mbps adaptive +1 100M/1000M/2.5Gbps adaptive), support WAN/LAN adaptive (network port blind plug)
Gigabit Version: Ethernet ports :3 (10M/100M/1000Mbps adaptive), support WAN/LAN adaptive (network port blind plug)
USB port: Not supported
Power supply :12V 1A
Power consumption: < 12W
FEM:IPA
Blind network port insertion: Supported
WLAN protocol :2.4G :802.11be/ax/b/g/n 5G: 802.11be/ax/ac/n/a
Wireless speed :3600Mbps (2.4GHz: 688Mbps, 5GHz: 2882Mbps)
Wireless frequency band :2.4GHz: 2.4-2.483GHz 5GHz: 5.17-5.34GHz, 5.735-5.835GHz
Antenna type: Built-in 5 omnidirectional antennas
Antenna gain :2.4G 5dBi 5G 6dBi
Dual broadband access: not supported
2.4G MIMO technology :2*2
5G MIMO technology :2*2
WLAN frequency range :2.4GHz: 2.4-2.483GHz 5GHz: 5.17-5.34GHz, 5.735-5.835GHz
Wireless protocol :2.4G :802.11be/ax/b/g/n 5G: 802.11be/ax/ac/n/a
Networking: Supported
Software functions: Supports Wi-Fi hiding, Wi-Fi periodic shutdown, limiting the bandwidth of connected devices, MAC address filtering, DMZ/ virtual server, port forwarding, 802.11k/v, and QR code scanning
Firewall: Supported
IPv6 support: Yes
